Retracting hydraulic gangway PI 374 ONDA - Retracting hydraulic gangways

PI 374 ONDA

Retracting hydraulic gangway for yachts and sailboats

The Onda telescopic retractable gangway has two stages with automatic functions for retraction/extension , telescopic and elevation. It is available with carriage extension to overcome the step.
The housing box (not watertight) is made of aluminum and has automatic hatch movement.
The structure is in painted or mirror polished stainless steel; the walkway in sturdy teak grating.
Supplied with mounting brackets and manual pump for emergency use
Available in 6 lengths ranging from 160 to 270 cm.

Handling via smartphone by downloading the APP-Besenzoni Control Device and installing the control unit.

INFO REQUEST

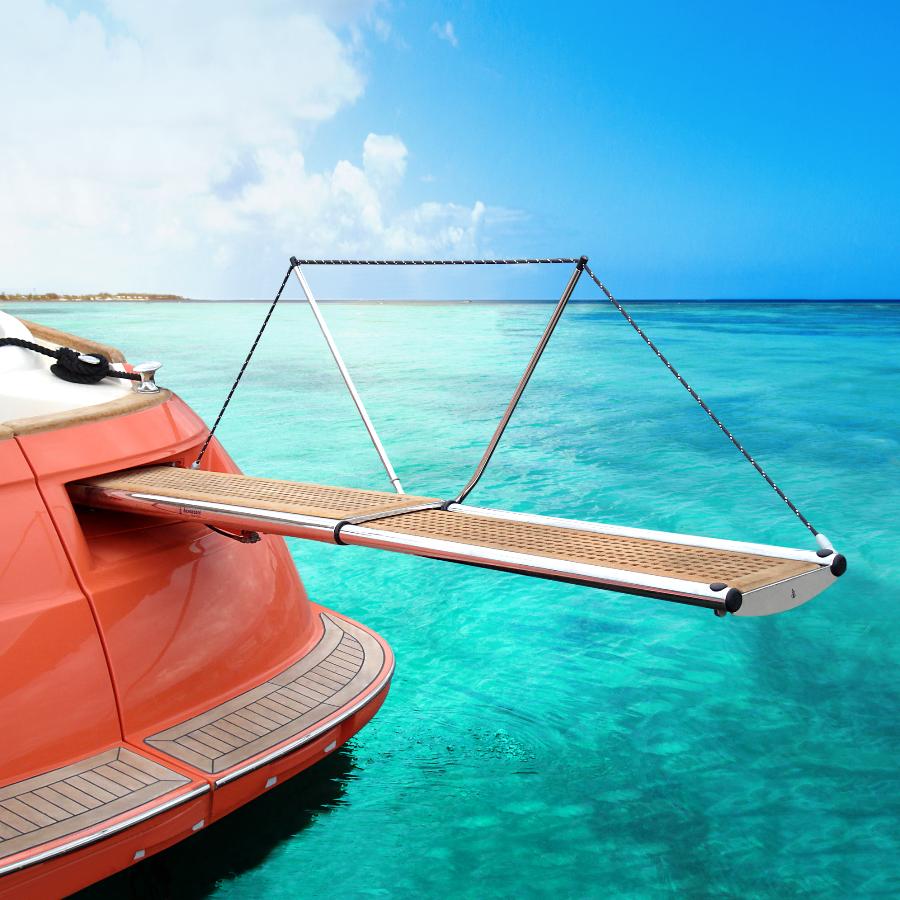

besenzoni passerella idraulica rientrante PI 374 onda installata in barca

Besenzoni passerella idraulica rientrante PI 374 Onda installata a bordo

Besenzoni passerella idraulica rientrante PI 374 Onda verniciata bianca

passerella automatica PI 374 si incassa nella barca

Passerella idraulica rientrante a due stadi per imbarcazioni a motore e a vela

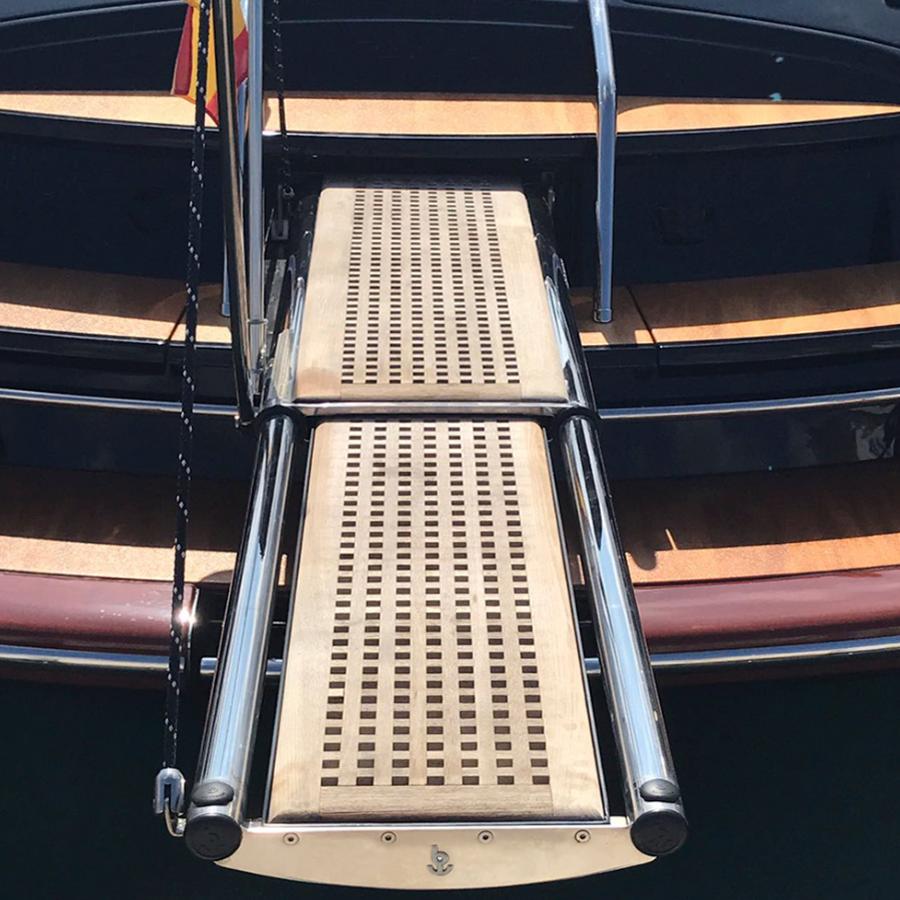

Besenzoni PI 374 Onda passerella per barca a motore e barca a vela installata a bordo

Besenzoni passerella idraulica rientrante PI 374 Onda vista laterale

PI 374 ONDA

Technical data

• Retractable telescopic gangway, double stage, with automatic function for retraction/extension, telescoping and elevation
• Structure made in polished or powder coated stainless steel
• Grating boardwalk made in teak
• Carriage extension available to overcome the steps
• Aluminium housing box with automatic hatch
• The weather resistant gangway box collects the cleaning and washing water only. It is not watertight.
• Mounting brackets included
• Automatic rope handrail
• Manual pump for emergency
• Remote and touchpad panel remote control to operate from the cockpit
• Lengths available from 160 to 270 cm

DOWNLOAD TECHNICAL SHEET DOWNLOAD CATALOG
