Ladder Platform LP 100 PLUS Oceano - Ladder-gangway multifunction

LP 100 PLUS

Ladder and platform in one solution

The LP 100 PLUS ladder / platform allows you to carry out multiple activities with a single product: its main function is obviously the one of a bathing ladder or boarding ladder but not only this, in fact it can be used as an extension of the sunbathing platform and as a tender lift as well.

The operation of the LP 100 PLUS provides a raise / lower movement with a hydraulically foldable final platform to lengthen the last step, thus facilitating the approach to the quay.

INFO REQUEST

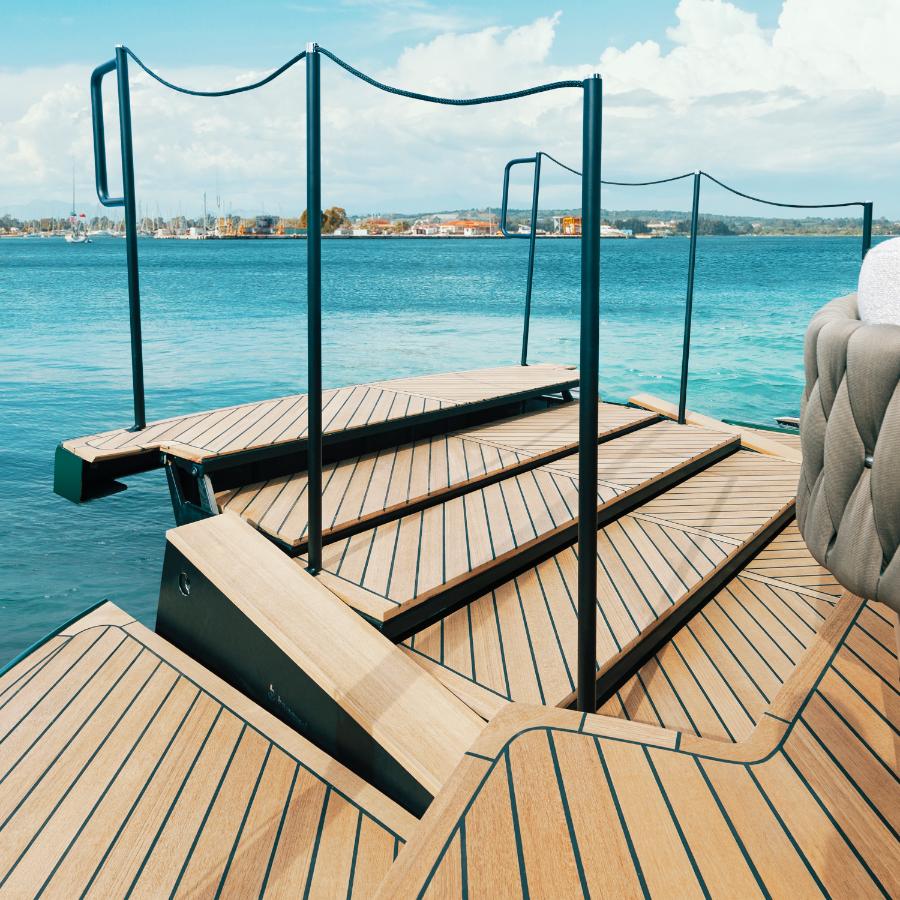

persona seduta sulla scala di uno yacht che si usa per scandere in acqua o salire sulla banchina

scala multifunzione Besenzoni per salire sullo yacht dalla banchina

Besenzoni LP 100 Plus scala multifunzione con candelieri

Besenzoni LP 100 Plus scala polivalente con sostegni e corde

Ladder-platform LP 100 plus con movimentazione idraulica

Scala bagno o scala da imbarco LP 100 plus

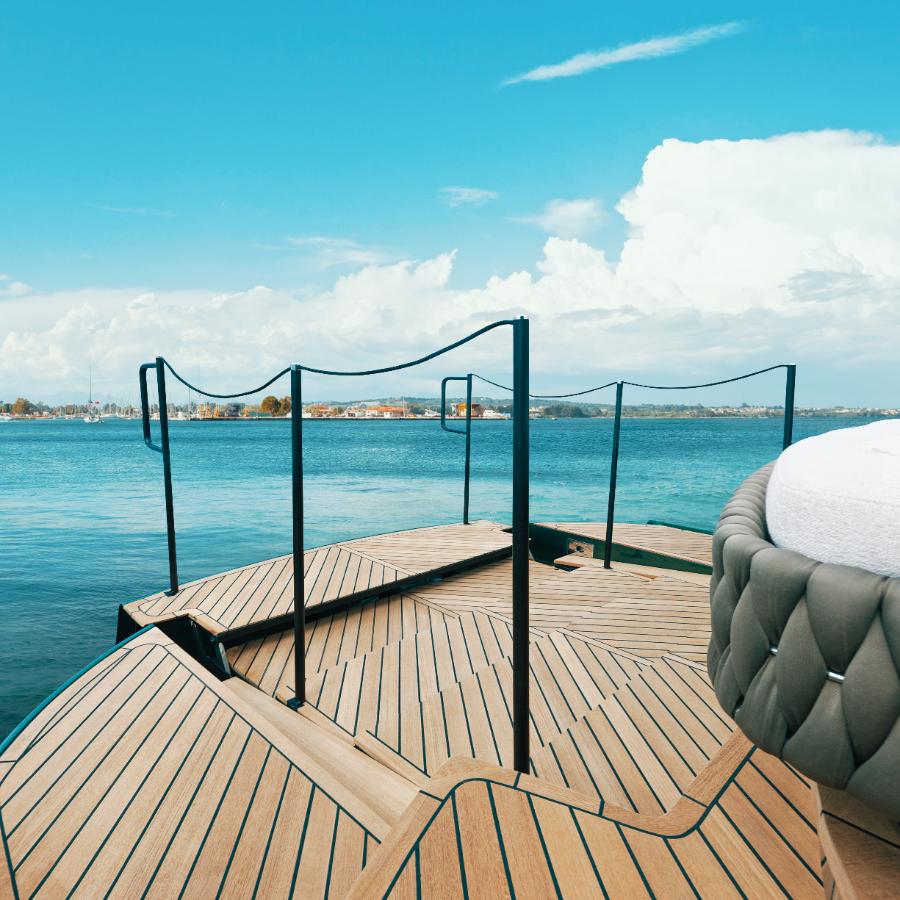

scala / plancetta LP 100 PLUS della gamma Oceano

Pedana trasformabile in scala LP 100 plus

Vista frontale della scala-piattaforma LP 100 plus

LP 100 PLUS

Technical data

• Bathing ladder or boarding ladder combined with the function of platform for launching and lifting the tender and jet ski
• Can be used as an extension of the sun deck
• Coated stainless steel structure
• Hydraulic movement for the up / down functions
• Hydraulic final tipping platform in such a way as to lengthen the last step facilitating the approach to the quay
• Double row of removable manual stanchions
• Dynamic lifting capacity of 150 - 400 up to 600 kg

This product can be made according to the size and characteristics of the boat

Product that can only be installed by specialized personnel during the construction or refitting phase and after structural analysis of the vessel
